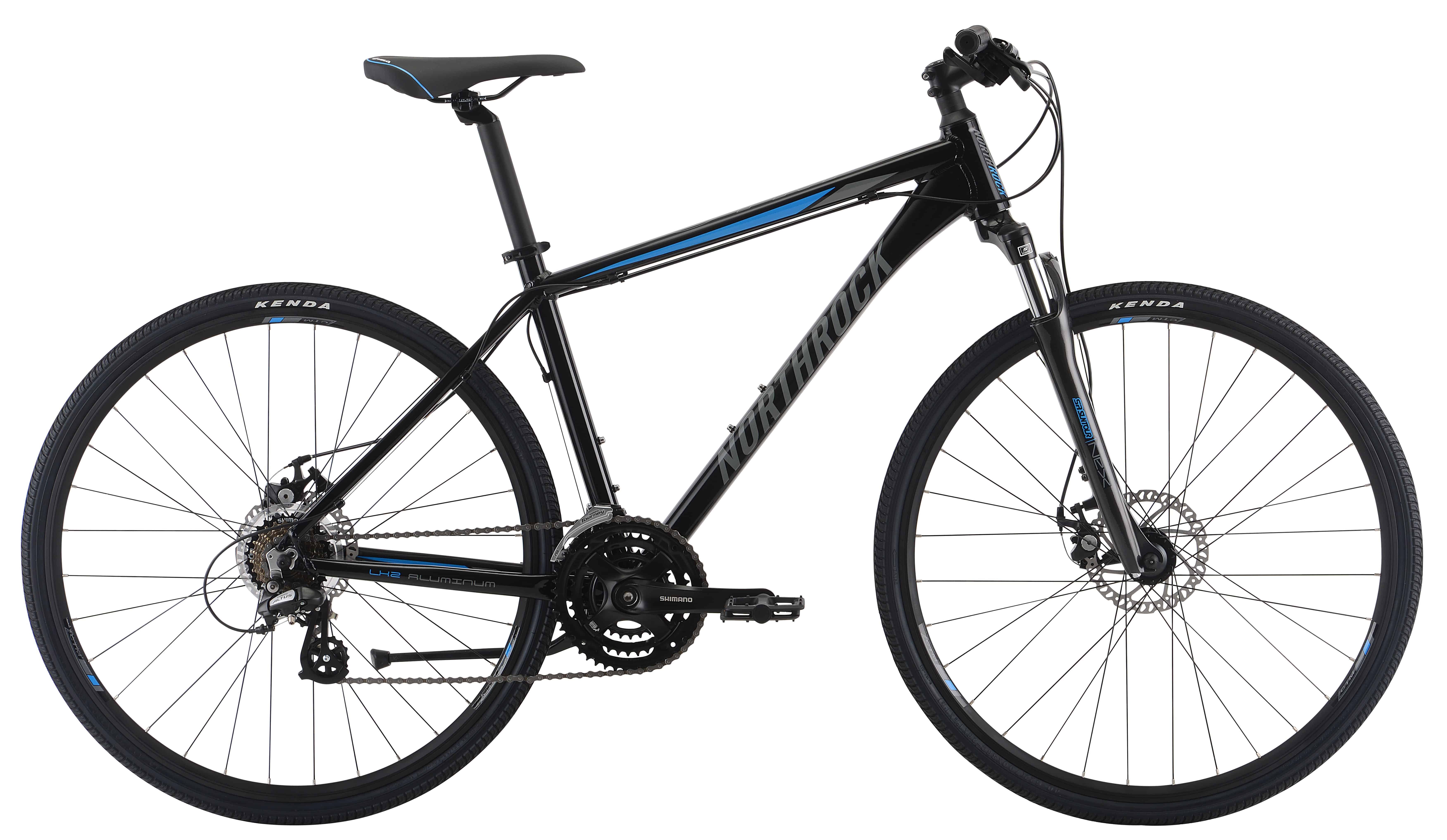

CTM - 700 X 40C Wheel
Features: • Hand built 6061 all-aluminum alloy press formed frame is light and responsive• Shimano Altus 21-speed drivetrain for precise and consistent shifting performance • Tektro mechanical disc brakes for control regardless of conditions• Kenda 700x38c treaded tires cross over from trail to pavement• SR Suntour NEX front suspension, preload, 63mm travel to handle unpredictable terrain• Alloy double wall rims: lightweight and strong• Stainless-steel spokes: designed to handle the elements• Top components: Shimano drivetrain, Velo saddle and grips, Tektro disc brakes, Kenda tires, KMC chain, SR Suntour suspension
Specifications
• Frame: all-aluminum 6061, dual-sport specific geometry, press formed lightweight aluminum frame for performance, fender and rack mounts, water bosses and replaceable derailleur hanger• Frame Size: medium 45.72 cm (18 in.), fits most riders 1.6 m to 1.9 m (5 ft. 6 in. to 6 ft. 2 in.)• Color: lithium grey satin matte finish with gloss black accent. Clear finish for a lasting look.• Fork: SR Suntour NEX, preload, disc mount, 63mm travel• Headset: sealed integrated threadless• Crank: Shimano, 48/38/28 • Bottom bracket: sealed cartridge• Rear derailleur: Shimano Altus• Shifter: Shimano EF-41 rapid-fire (21 speeds)• Cogset: Shimano (14-28T) • Chain: KMC-HV500• Brakes: Tektro mechanical dual disc• Brake levers: Shimano EF-41 integrated with shifter• Front hub: 32H alloy with quick-release• Rear hub: 32H alloy with quick-release • Spokes: stainless-steel• Rims: alloy double wall lightweight• Tires: Kenda dual-terrain, 700x38c• Handlebars: NR 31.8 mm low rise black alloy• Grips: Velo ergonomic dual density comfort grip• Stem: NR sport, 8-degree • Seatpost: alloy adjustable 30.9mm with quick-release• Seat: Velo performance comfort• Kickstand: included• Assembly tools: included
All specifications are subject to change without notice
Sizing & Fit Guide
.png)
Sizing chart is for reference only. To determine the correct fit, check for clearance over the bicycle. Stand over the bicycle with one foot firmly planted on each side.
Different Riding = Different Fit:
Paved Surfaces, a minimum standover heigh clearance of two inches (5 cm) is recommended.
Unpaved Surfaces, ligt gravel, a minimum of three inches (7.5 cm) of standover height clearance is recommended.
Off-road, four inches (10cm) or more for standover height clearance is recommended.
Inches / (centimeters): Frame Size: 18" / 45.72 cm A - Standover Height: 30.80" / 78.23 cm B - Effective Top Tube: 23.43" / 59.5 cm C - Seat Tube Length: 17.91" / 45.5 cmD - Head Tube Length: 4.64" / 11.8 cmE - Chain Stay Length: 17.12" / 43.5 cm F - Reach: 16.35" / 41.55 cm G - Wheel Size: 700x40cRider Height Guide: Fits most riders 5 ft 6 in to 6 ft 2 in
Rider Height Guide (cm): 160 - 180 cm
* Rider Height is a “guide”. See Owner’s Manual for proper fit.
